Leica TS20 Robotic Total Station – I – Imaging / R1600 / 1.

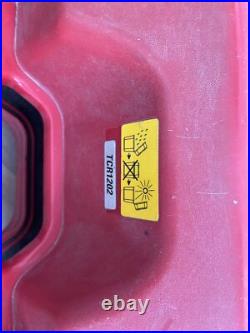

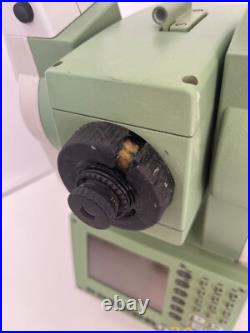

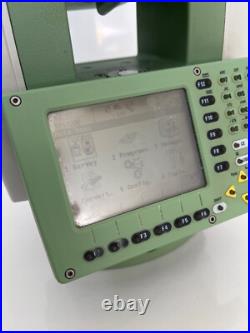

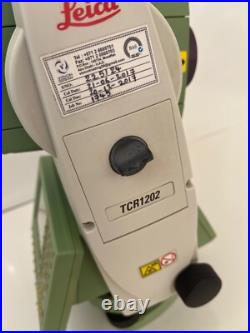

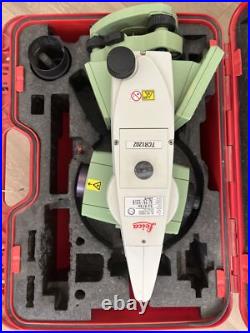

Leica TCR1202 total station. This product data sheet is originally written in English.
MPR122 Accurate 360 Degree Reflective Prism For Leica ATR Total-station Accessories Topography Survey Copper Coated. · Corner Cube Prism 6. · 3 arcsec beam deviation. · +28.1mm Constant/offset.

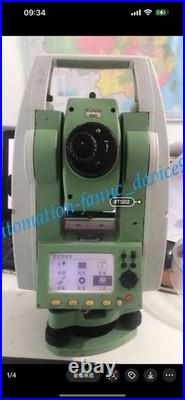

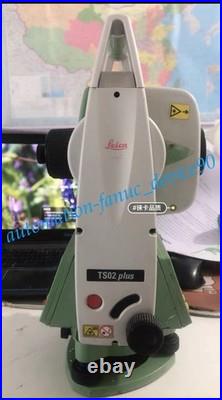

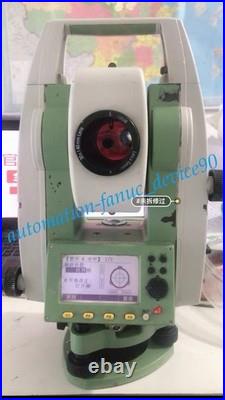

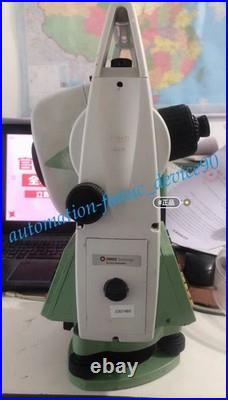

Leica TS02 Plus Total Station. We have only confirmed power supply and button responsiveness. Other measurements and functions have not been tested. The battery is fully charged. We cannot determine its current state of wear. The tripod has scratches and stains. The items included are only those shown in the photos. Anything not pictured is not included. (Except for the trolley). The language setting may not be set to English. International Buyers – Please Note. Thank you for your understanding.
360 Degree Mini Prism with Pole, Hook, Level Bubble, GRZ101 Surveying Prism for Leica ATR Total Station, 1/4-20 Thread. Prism constant:+30mm, Copper Coated film. 1/4×20 external/male thread on one side. 1/4×20 internal/female thread on the other side. 1.2m/47.2 Ground Rod.

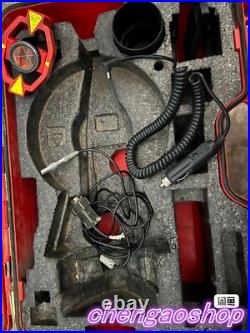

// –In Great Condition–//. The Leica TC400 Total Station is a vintage electronic total station introduced by Leica Geosystems in the early 1990s. It belongs to Leica’s TC series TC200, TC400, TC600, etc. , which were widely used for land surveying and construction layout before robotic and GNSS-integrated total stations became standard. Angle Measurement Accuracy: approx. Distance Measurement (EDM): up to 3,500 m with a prism. Accuracy: ± (3 mm + 3 ppm). Display & Interface: simple alphanumeric display with keypad. Memory: limited internal storage for coordinates and measurements. Data Transfer: RS-232 serial port for connection to external data collectors. Power Supply: rechargeable battery packs. The Leica TC400 Total Station is still good for. Collectors – a classic Leica instrument from the early 1990s, valuable as a vintage surveying tool. Historic model – Part of Leica’s early 1990s TC series, which laid the foundation for the modern TPS and Viva lines. Classic Leica design – sturdy Swiss-made construction with that vintage green body. Surveying history – represents the transition from optical theodolites to fully electronic total stations. Educational purposes – schools or training programs can use it to teach the basics of total station operation. Basic surveying & construction layout – linework, stakeout, and measuring distances/angles on small projects. Backup equipment – for surveyors who need a simple instrument as a spare. Display / demonstration – looks impressive as a display piece in an office, workshop, or museum collection. The Leica TC400 is considered easy to use compared to modern total stations. Simple keypad & display – just the essential functions, no complicated menus. Straightforward setup – leveling, aiming, and measuring are very direct. This Post Includes. Vintage Leica TC 400 Total Station.
Model: GEV162 GPS Data Transfer Cable 733282. Compatible with lemo 1B 8pin male connector. Plug B : 9Pin RS232 SERIAL connector. Connects RX1250 / ATX1200 /GS10/GS15 Receiver(Port 1) or CS10/CS15 Conetroller (with lemo 8pin connector) or TS30/TM30 to PC.
360 Degree Prism for Leica Robotic Total Station Replace GRZ122 Survey Reflector. With 5/8×11 Thread on the top. With Red Soft Bag.
Michigan based company with a global presence. Offering New & Refurbished Total Stations, GPS / GNSS Base & Rovers, Radios, Antennas, Data Collectors, Grade & Pipe Lasers, Digital Levels, Magnetic Locators, Grade Control Systems, AgGPS Systems, Field Supplies, Accessories, Hand Tools & Safety Equipment! Leica TCRP1205+R400 5 Motorized Auto Target Total Station ID- X3386-L/T. Factory Calibrated Leica GKL211 Battery Charger Battery Pack AC Adapter/Charger DC Car Charger User Manual On CD Hard Carrying Case. Leica TCRP1205+R400 5 Motorized Auto Target Total Station – Calibrated By A Leica Service Center. Leica TRCP1205+R400 Specifications Table. Leica TRCP1205+R400 5 Motorized Auto Target Total Station. Measurements of high angles precise and accurate measurements long distance, supported for a quick and perfect systems Automatic aims at the prism. You will work faster, more rigorously and under less pressure. Intuitive interface, powerful database routines and programs loaded in total station: simplicity and identical in TPS and GPS. Easy viewing of entire surveyed area and immediate access to all measured data. You see exactly what you’ve done and what you’ve still to do. Configure and program the TPS1200 as you wish, for their applications, and export the infomation needed. TPS1200 total stations cover a range of models and options. Select the ones that suit you best. Use TPS1200 For Everything. Use TPS1200 total stations for surveying, engineering, stakeout, topo, monitoring etc. Combine them with GNSS. Benefit from huge productivity of System 1200. Find the prism automatically. PowerSearch finds reflectors within seconds no matter where they are. With PowerSearch activated, TPS1200 rotates and sends out a vertical laser fan. As soon as the fan strikes a prism TPS1200 stops rotating, ATR takes over and fine points – all fully automatically. Accuracy (standard deviation ISO 17123- 3). 5 (1.5 mgon). 0.1 (0.5 mgon). Working range: 4′ (0.07 gon) Setting accuracy: 1.5 (0.5 mgon) Method: centralized dual axis compensator. Distance measurement (IR) (Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer). 3000 m (10000 ft). 3 standard prisms (GPR1). 4500 m (14700 ft). 1500 m (5000 ft). 360° mini prism (GRZ101). 800 m (2600 ft). 1200 m (4000 ft). Reflector tape (60 mm x 60mm). 250 m (800 ft). Accuracy (standard deviation ISO 17123-4) / Measure time. Standard mode: 2 mm + 2 ppm / typ. 1.5 s Fast mode: 5 mm + 2 ppm / typ. 0.8 s Tracking mode: 5 mm + 2 ppm / typ. Principle: Phase measurement Type: Coaxial, infrared laser Carrier wave: 780 nm Measuring system: Special frequency system basis 100 MHz = 1.5 m. PinPoint reflectorless distance measurement (RL) (Object in shade, or sky overcast). 400m / 200m (Kodak Gray Card: 90% reflective / 18% / 18% reflective). Shortest / Longest measureable distanec: 1.5m / 1000m-7500m. Accuracy / Measurement Time (standard deviation, ISO 17123-4) (object in shade, sky overcast). 500m: 4mm + 2ppm / typ. 12s Long Range: 5mm + 2ppm / typ. At 30m: approx 7mm x 10mm At 50m: approx 8mm x 20mm. PinPoint R400: system analyzer (coaxial, visible red laser). Automatic Target Recognition (ATR). Range ATR / Lock Mode. Standard prism (GPR1): 1000 m (3300 ft) / 800 m (2600 ft) 360° prism (GRZ4): 600 m (2000 ft) / 500 m (1600 ft) 360° mini prism (GRZ101): 350 m (1150 ft) / 300 m (1000 ft) Mini prism (GMP101): 500 m (1600 ft) / 400 m (1300 ft) Reflector tape (60 mm x 60mm): 55 m (175ft) / – Shortest measuring distance: 1.5 m / 5 m. Accuracy / Measure time. Maximum speed (LOCK mode). Tangential (standard mode): 5 m / s at 20 m, 25 m / s at 100 m Radial (tracking mode): 5 m / s. Search time in field of view: Typ. 3 s Field of view: 1° 30′ (1.66 gon) Definable search Windows: Yes. Principle: Digital image processing Type: infrared laser. Standard prism (GPR1): 200 m (650 ft) 360° prism (GRZ4): 200 m (650 ft) (perfectly aligned to the instrument) Mini prism (GMP101): 100 m (330 ft) Shortest measuring distance: 1.5 m. Principle: Digital signal processing Type: infrared laser. Working range: 5 m – 150 m. Positioning accuracy: 5 cm at 100 m. Magnification: 30 x Free objective aperture: 40 mm Field of view: 1°30′ (1.66 gon) / 2.7 m at 100 m Focusing range: 1.7 m to infinity. Display: ¼ VGA (320240 pixels), graphic LCD, illumination, touch screen (optional) Keyboard: 34 keys (12 function keys, 12 alphanumeric keys), illumination Angle display: 360°’ , 360° decimal, 400 gon, 6400 mil, V% Distance display: meter, int. Ft/inch, US ft, US ft/inch Position: face I standard / face II optional. Internal memory: 32 MB (optional) Memory card: CompactFlash cards (32 MB and 256 MB) Number of data records: 1750 / MB Interface: RS232, BluetoothTM (optional). Centering accuracy: 1.5 mm at 1.5 m (deviation from plumb line) Laser dot diameter: 2.5 mm at 1.5 m. Number of drives: 1 horizontal / 1 vertical. Sensitivity: 6′ / 2 mm. Type: Lithium-Ion Voltage: 7.4 V Capacity: 3.8 Ah Operating time: Typ. 6 – 8 h. Tilting axis height: 196 mm above tribrach Height: 345 mm Width: 226 mm Length: 203 mm. Total station: 4.8 – 5.5 kg (depending on type and options) Battery (GEB221): 0.2 kg Tribrach (GDF121): 0.8 kg. Working temperature range: -20°C to +50°C Storage temperature range: -40°C to +70°C Dust / water (IEC 60529): IP54 Humidity: 95%, non-condensing. (Certain orders may take longer for processing due to comprehensive final service inspections). Sell Smarter with Kyozou. Inventory and Ecommerce Management. The checkout process is designed so that it communicates with the merchant to c.
GRZ122 Accurate 360 Degree Reflective Prism with Metal Holder for Leica ATR. Steel casings on top and bottom Unit case Glass protector. +28.1mm Quality: 10pcs. 100% Brand New , high quality.
